TSF technician required
Rail-compatible
Spacing 88 cm
Mostly used on TV sets, compact
Overall height: 1.79 m
Possible pivot point extension +0.36 m

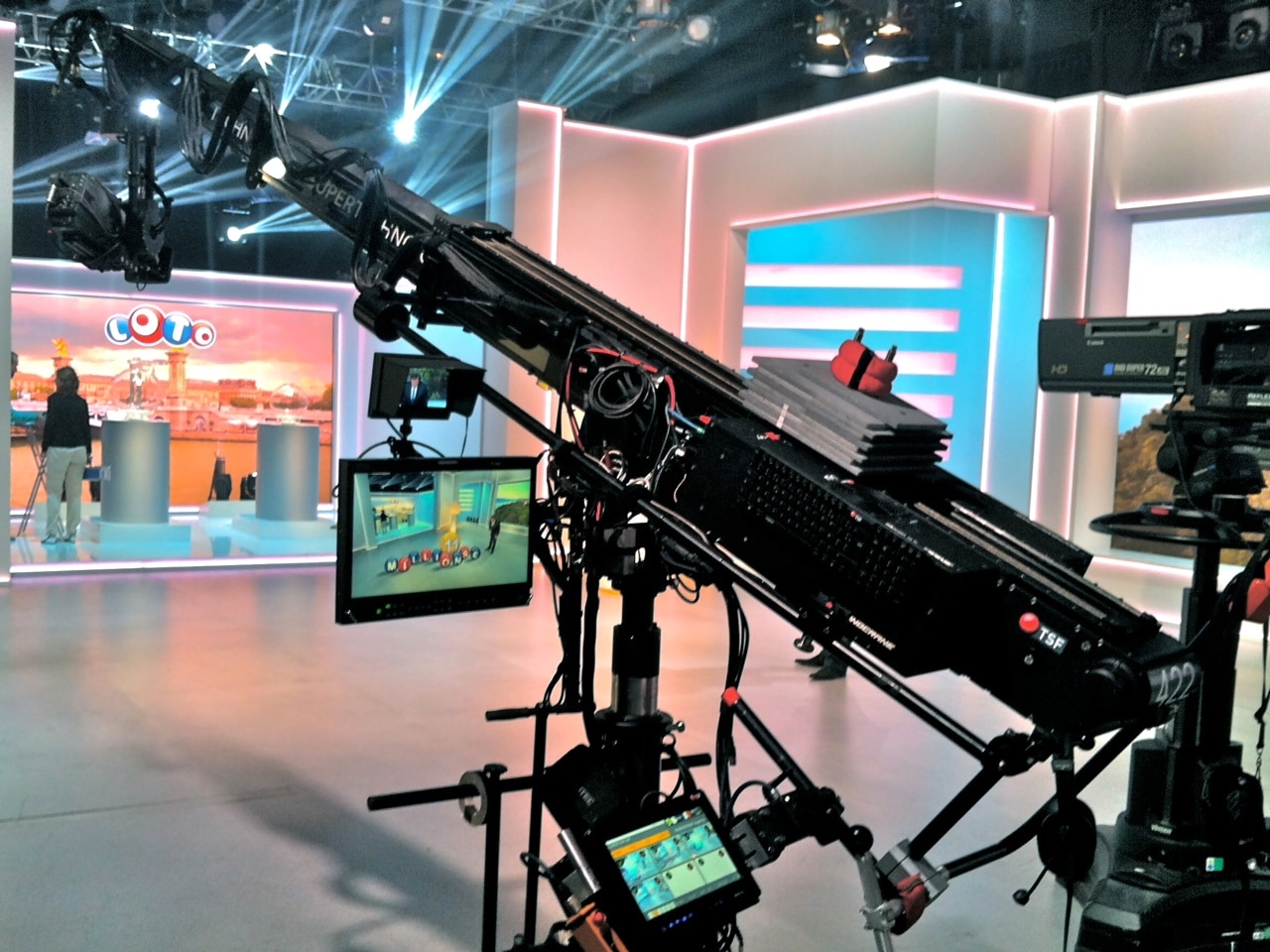

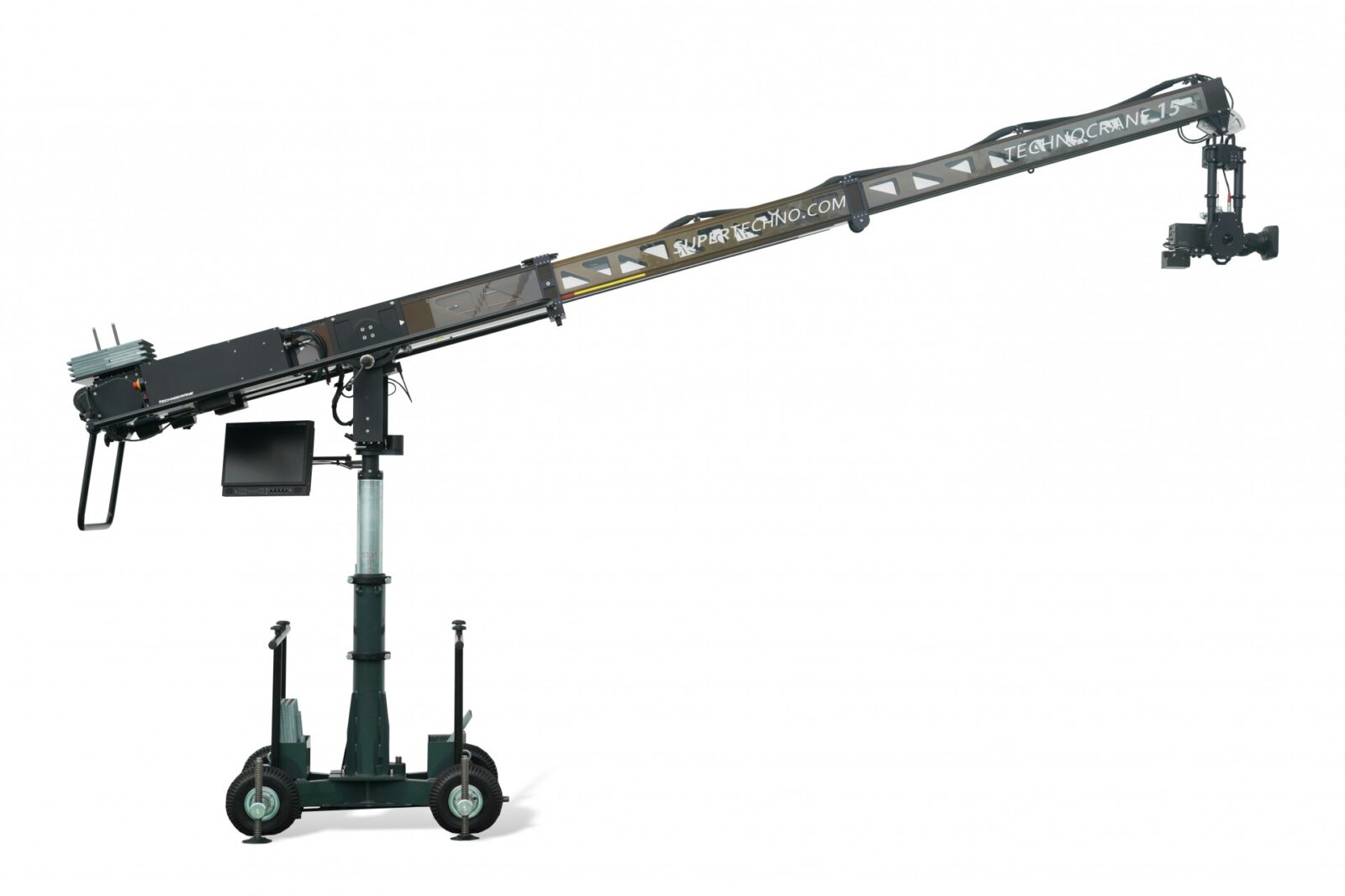

The smallest of Supertechno's telescopic cranes (15′) used in single-operator mode and allowing, with the DATA module, to export tracking data, do augmented reality, track the video wall, N-Display on Unreal… Tracking data in RS-422 or UDP serial port.
Power supply 220 – 240 V AC, 50 Hz, 16 A.
Maximum height
4,65M
Arm length from pivot
4,15M
Rear platform length
1,68M
Base dimensions
12.1 cm
Total weight with ballast
477 kg
Telescope speed
1.5M/s
Maximum playload
35 kg
“Plus” features
Data export / Tracking / R.A.
