| Dimensions | Connectivity | TSF-Compatible Computers | Power Outputs | Power Inputs | Estimated Runtime |
|---|---|---|---|---|---|
Dimensions: Width: 553 mm Height: 228 mm Depth: 350 mm Weight: 15 kg (without MacBook) | USB-A 5 Gbit/s* USB-C 10 Gbit/s* *3 configurable ports 1 SD 1 MicroSD 1 Compact Flash 1 U.2 NVMe 40 Gbit/s dock | MacBook Pro M1/M2/M4 16-inch MacBook Pro Touch Bar 16-inch MacBook Pro Touch Bar 15-inch | x3 PC16 Type F power outlets (330W max) , x1 USB-C Thunderbolt 3 85W (for MacBook) | x1 Schuko IEC (230V) x1 XLR 3 (24V) | BEBOB Cube 1200 (4–6 hours) UME 1200 (4–6 hours) UME 1800 (6–8 hours) UME 2400 (8–10 hours) UME 3000 (10–13 hours) |

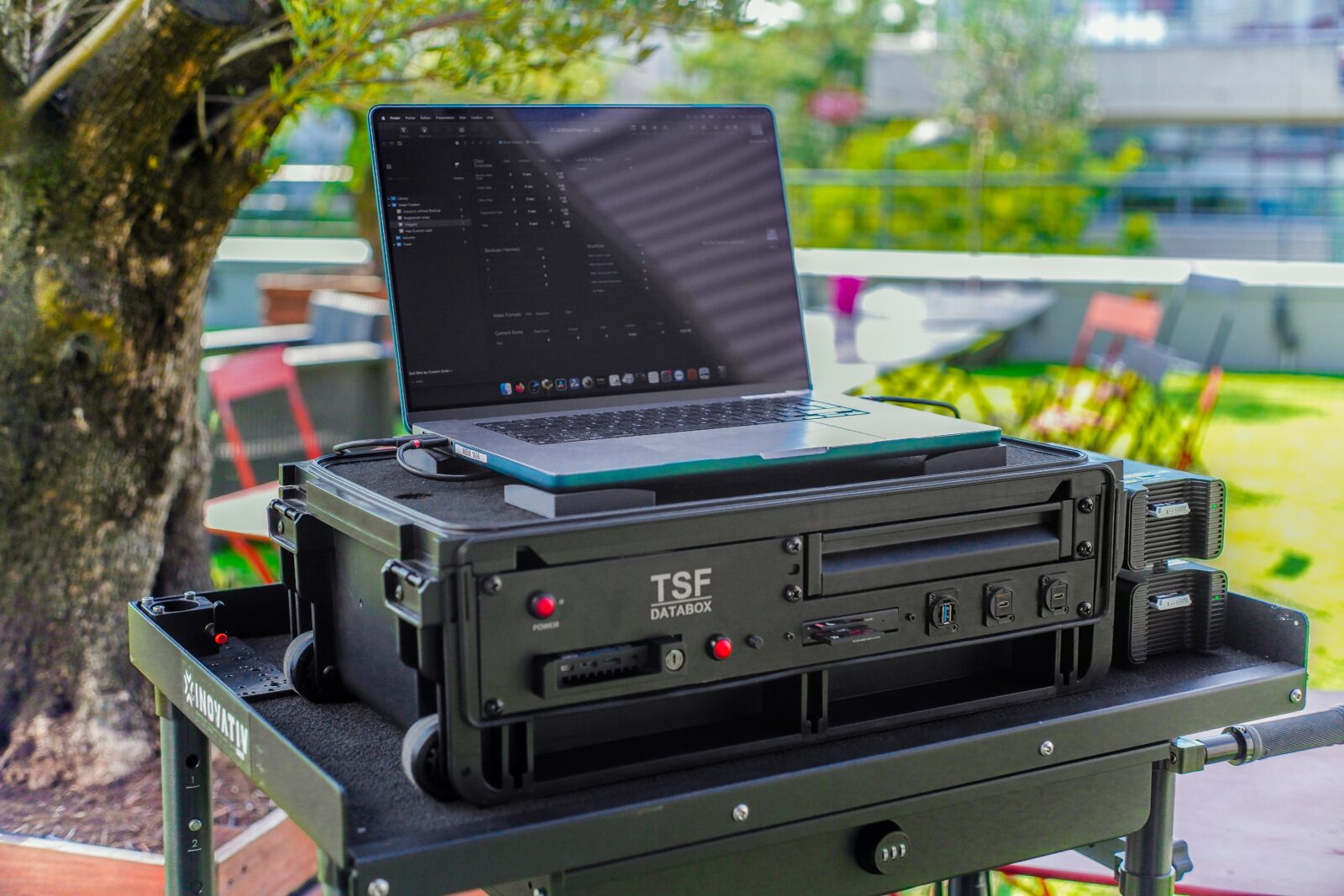

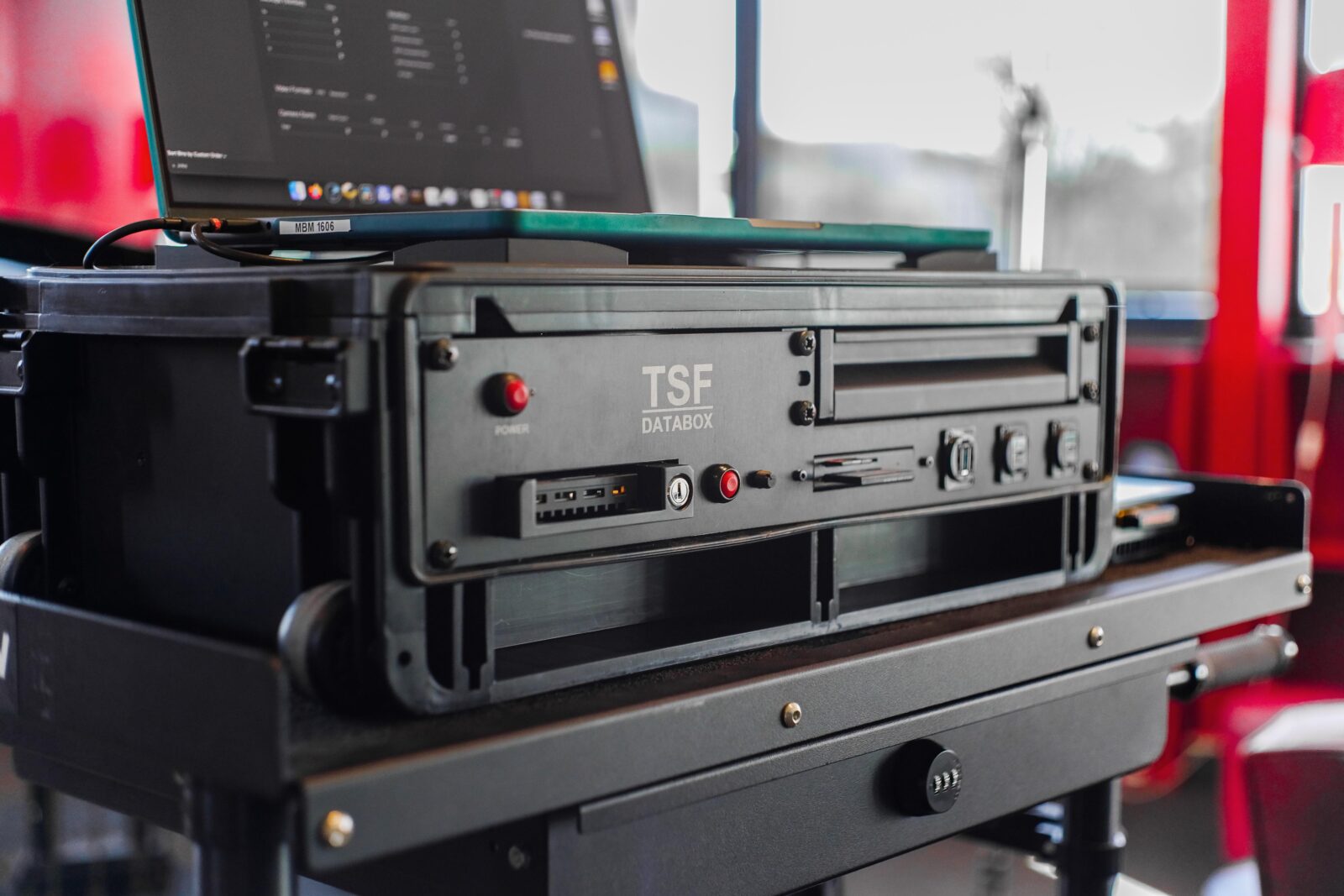

TSF Databox
Product benefits
The TSF Databox is a compact, portable backup solution designed for on-set data management.

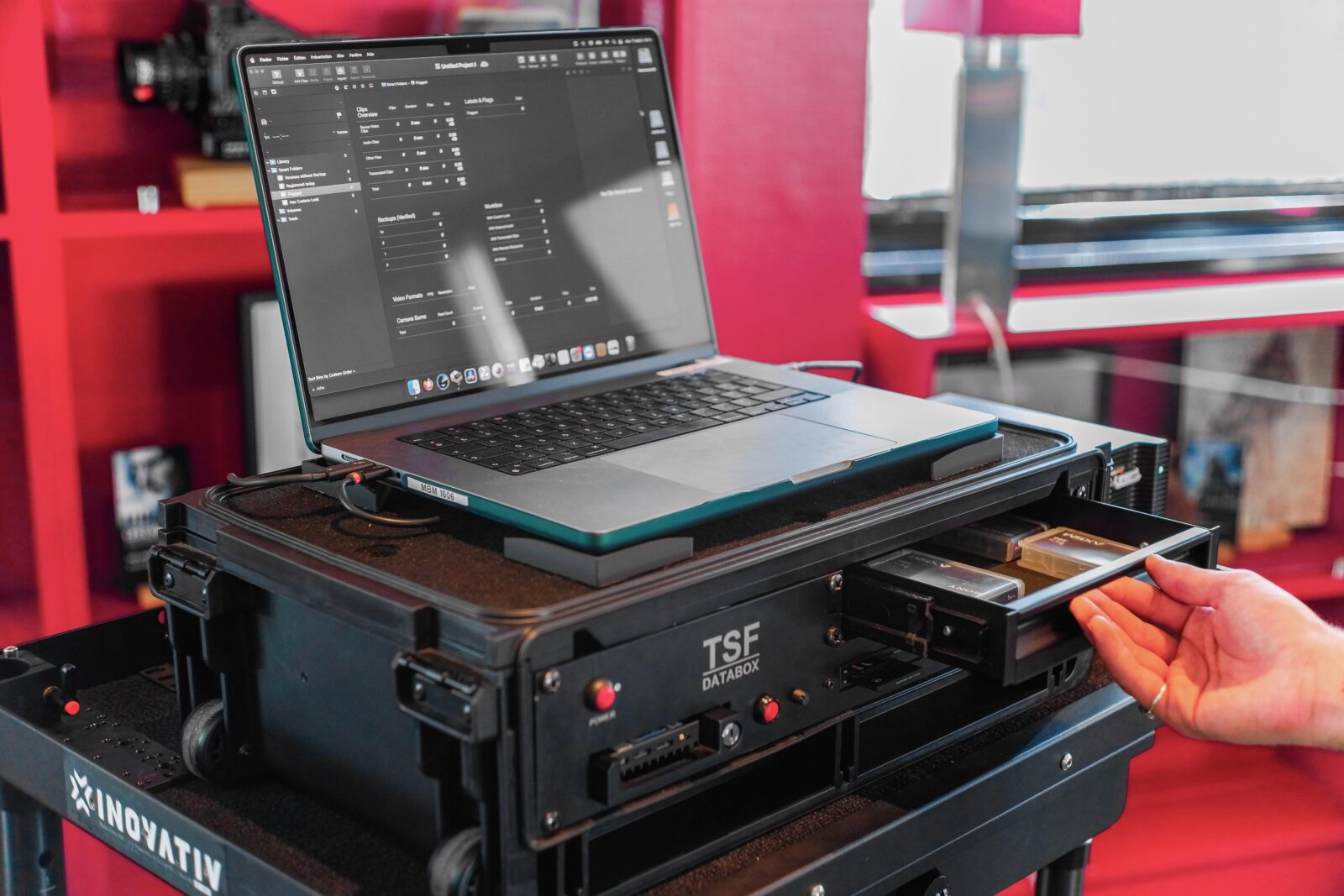

Compatible with all USB-C MacBooks, the TSF Databox features an ultra-fast U.2 NVMe shuttle dock, a multi-format card reader ideal for audio recorders and compact cinema cameras, three configurable USB-A or USB-C ports, a variable-speed cooling system, and an integrated storage drawer.
An optional BNC video output is available upon request.
For added reliability, the Databox includes a 330 W UPS with three AC power outlets, allowing storage towers, card readers, monitors, and other peripherals to remain powered during operation.
The unit can be powered either by 230 V AC via Schuko or 24 V DC via a 3-pin XLR connection from a battery.
Everything is housed in a 2U SKB Flyer Rack Case with wheels, weighing only 15 kg (33 lb) without the MacBook.
