Arri

Zeiss Ultra Prime PL

Optics S35 Optics

Arri

Spherical

Serie

Product benefits

Wide range of fixed focal lengths

Proven Zeiss optical quality

Compact, robust design

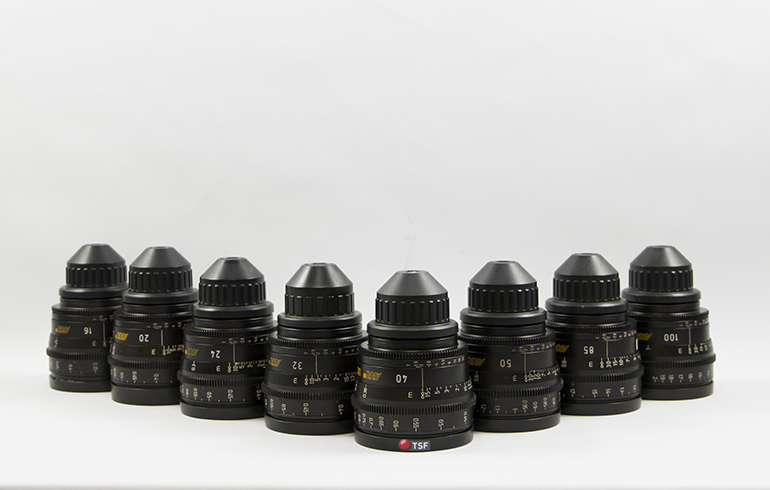

The ARRI / ZEISS Ultra Prime T1.9 series is a range of light and fast cinema fixed lenses, renowned for offering one of the widest focal ranges on the market, from 12 mm to 180 mm.
These lenses combine excellent optical quality, high sharpness, low distortion and homogeneous ergonomics, making them a must-have reference for feature films, high-end series and commercials.

Technical specifications

Focuses	Diaph	Close focus	Faceplate diameter	Length	Weight
16 mm	T1.9	1′	95 mm	153 mm	1.2 kg
20 mm	T1.9	1′	95 mm	91 mm	1.2 kg
24 mm	T1.9	1′	95 mm	91 mm	1 kg
32 mm	T1.9	1’3″	95 mm	91 mm	1.1 kg
40 mm	T1.9	1’3′	95 mm	91 mm	1 kg
50 mm	T1.9	2′	95 mm	91 mm	1 kg
85 mm	T1.9	3′	95 mm	91 mm	1.2 kg
100 mm	T1.9	3’3″	95 mm	91 mm	1.2 kg
Special issue 8R	T2.8	1’3″	134 mm	130 mm	2 kg
14 mm special edition	T1.9	9″	114 mm	112 mm	1.8 kg
28 mm special edition	T1.9	1′	95 mm	91 mm	1 kg
65 mm special edition	T1.9	2’3″	95 mm	91 mm	1.1 kg
Special 135 mm	T1.9	5′	95 mm	119 mm	1.6 kg
180 mm special edition	T1.9	8’6″	114 mm	166 mm	2.6 kg
